29100YP · Swivel / Fixed / Brake
PP Caster, Steel Ball Caps
Industrial casters100–200 mm · up to 420 kg
Brake / lockML Series · 30125V

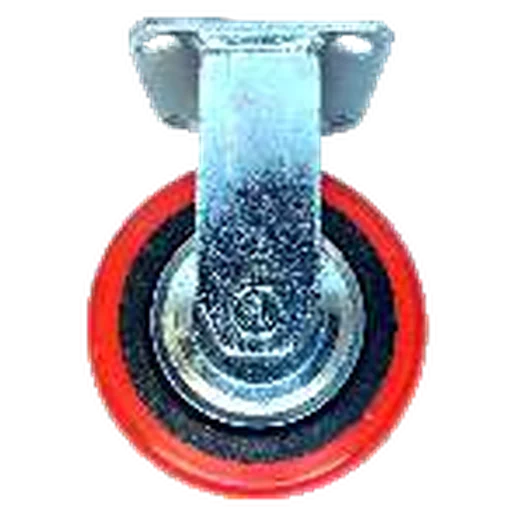

Red PVC Caster
Red PVC caster with double ball bearing swivel - fix & on off brake.
Red PVCDouble ball bearingIndustrial casters
Type
Wheel size (mm)
- Load / caster
- 130 kg
- Overall height
- 164 mm
- Wheel
- 125x50
Message: “Hi Star Brand, I'm interested in 30125V, 125x50 mm. Please share price and availability.”
- Bulk and dealer orders welcome
- We reply the same working day.
DWG · 30125V · not to scale
Technical drawing
Key dimensions for the selected size. Full figures are in the table below.
Specifications
As printed in the Star Brand catalogue, page 4. Tap a row to select that size.
| Swivel code | Brake code | Fixed code | Height (mm) | Wheel (mm) | Offset (mm) | Plate (mm) | Hole centre (mm) | Bolt hole (mm) | Load (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 30100V | 30100VB | 30100VF | 142 | 100x50 | 35 | 114x100 | 85x72 | 10.8x19 | 120 |
| 30125V | 30125VB | 30125VF | 164 | 125x50 | 39 | 114x100 | 85x72 | 10.8x19 | 130 |
| 30150V | 30150VB | 30150VF | 190 | 150x50 | 45 | 114x100 | 85x72 | 10.8x19 | 180 |
| 30200V | 30200VB | 30200VF | 240 | 200x50 | 56 | 114x100 | 85x72 | 10.8x19 | 200 |
