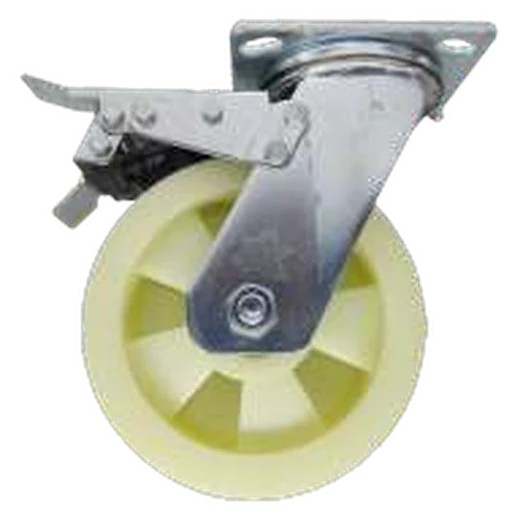

Brake / lockFY Series · 29125YP
PP Caster, Steel Ball Caps
PP caster with double ball bearing swivel, fix & on off brake.
PP (polypropylene)Double ball bearingIndustrial casters
Type
Wheel size (mm)
- Load / caster
- 320 kg
- Overall height
- 165 mm
- Wheel
- 125x47
Message: “Hi Star Brand, I'm interested in 29125YP, 125x47 mm. Please share price and availability.”
- Double steel protection cap on both balls
- Bulk and dealer orders welcome
- We reply the same working day.
DWG · 29125YP · not to scale
Technical drawing
Key dimensions for the selected size. Full figures are in the table below.
Specifications
As printed in the Star Brand catalogue, page 3. Tap a row to select that size.
| Swivel code | Fixed code | Brake code | Height (mm) | Wheel (mm) | Offset (mm) | Plate (mm) | Hole centre (mm) | Bolt hole (mm) | Load (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 29100YP | 29100PF | 29100YPB | 144 | 100x47 | 80 | 115x100 | 76x92 | 10.5x19 | 250 |
| 29125YP | 29125PF | 29125YPB | 165 | 125x47 | 96 | 115x100 | 76x92 | 10.5x19 | 320 |
| 29150YP | 29150PF | 29150YPB | 191 | 150x47 | 114 | 115x100 | 76x92 | 10.5x19 | 370 |
| 29200YP | 29200PF | 29200YPB | 242 | 200x47 | 150 | 115x100 | 76x92 | 10.5x19 | 420 |
