29100YP · Swivel / Fixed / Brake
PP Caster, Steel Ball Caps
Industrial casters100–200 mm · up to 420 kg

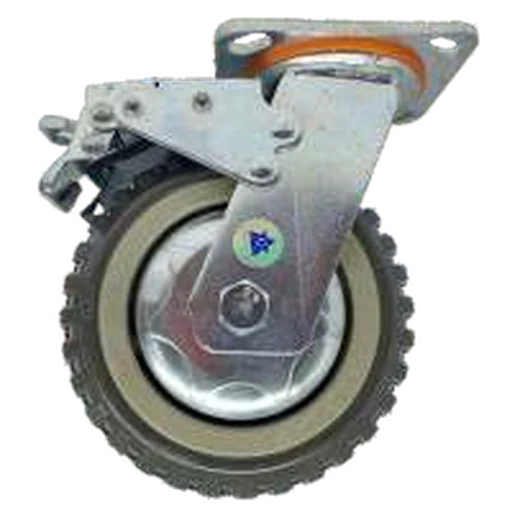

Brake / lockFY Series · 29125G
Anti-Skid PU/PVC Caster
Anti skid PU / PVC caster with double ball bearing, swivel, fix & on off brake.
Anti-skid PU/PVCDouble ball bearingIndustrial casters
Type
Wheel size (mm)
- Load / caster
- 140 kg
- Overall height
- 164 mm
- Wheel
- 125x50
Message: “Hi Star Brand, I'm interested in 29125G, 125x50 mm. Please share price and availability.”
- Warranty and test certificate given
- Bulk and dealer orders welcome
- We reply the same working day.
DWG · 29125G · not to scale
Technical drawing
Key dimensions for the selected size. Full figures are in the table below.
Specifications
As printed in the Star Brand catalogue, page 3. Tap a row to select that size.
| Swivel code | Fixed code | Brake code | Height (mm) | Wheel (mm) | Offset (mm) | Plate (mm) | Hole centre (mm) | Bolt hole (mm) | Load (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 29100G | 29100GF | 29100GB2 | 142 | 100x50 | 35 | 114x100 | 85x72 | 10.5x19 | 120 |
| 29125G | 29125GF | 29125GB2 | 164 | 125x50 | 39 | 114x100 | 85x72 | 10.5x19 | 140 |
| 29150G | 29150GF | 29150GB2 | 190 | 150x50 | 45 | 114x100 | 85x72 | 10.5x19 | 220 |
| 29200G | 29200GF | 29200GB2 | 240 | 200x50 | 40 | 114x100 | 85x72 | 10.5x19 | 240 |
