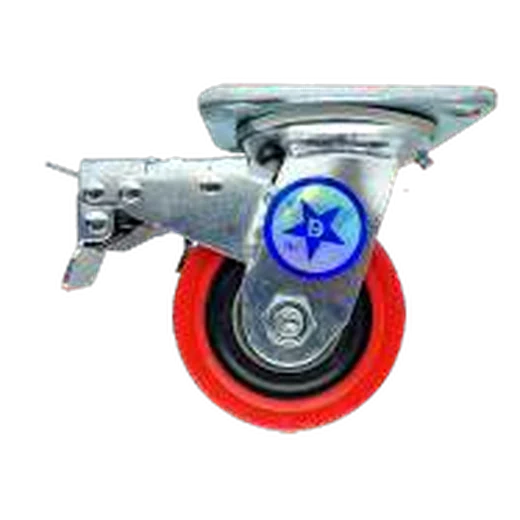

Brake / lockLY Series · LY-1012
PU Caster, PP Core

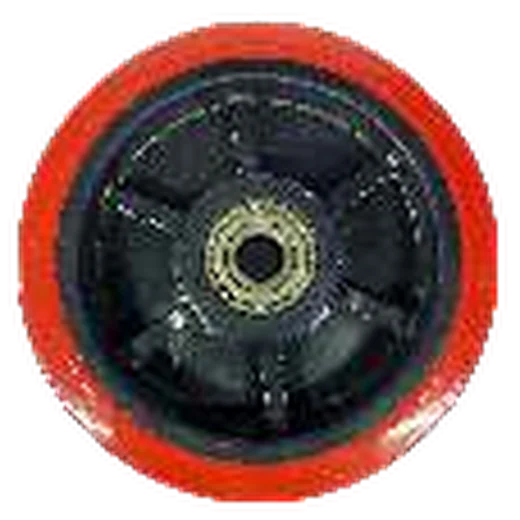

Polyurethane caster with PP core, double ball bearings 6204.
PU on PP coreDouble ball bearing 6204Industrial casters
Type
Wheel size (mm)
- Load / caster
- 280 kg
- Overall height
- 159 mm
- Wheel
- 125 50
Message: “Hi Star Brand, I'm interested in LY-1012, 125 50 mm. Please share price and availability.”
- Warranty and test certificate given
- Bulk and dealer orders welcome
- We reply the same working day.
DWG · LY-1012 · not to scale
Technical drawing
Key dimensions for the selected size. Full figures are in the table below.
Specifications
As printed in the Star Brand catalogue, page 21. Tap a row to select that size.
| Wheel (mm) | Load (kg) | Height (mm) | Offset (mm) | Plate (mm) | Hole centre (mm) | Bolt hole (mm) |
|---|---|---|---|---|---|---|
| 100 50 | 200 | 135 | 20 | 115 100 | 85 73 | 20 11 |
| 125 50 | 280 | 159 | 30 | 115 100 | 85 73 | 20 11 |
| 152 50 | 320 | 189 | 36 | 115 100 | 85 73 | 20 11 |
| 200 50 | 400 | 238 | 39.5 | 115 100 | 85 73 | 20 11 |
