29100YP · Swivel / Fixed / Brake
PP Caster, Steel Ball Caps
Industrial casters100–200 mm · up to 420 kg

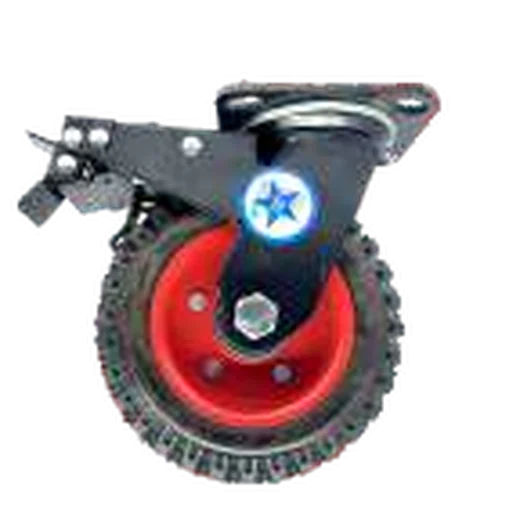

Brake / lockLY Series · LY-1102

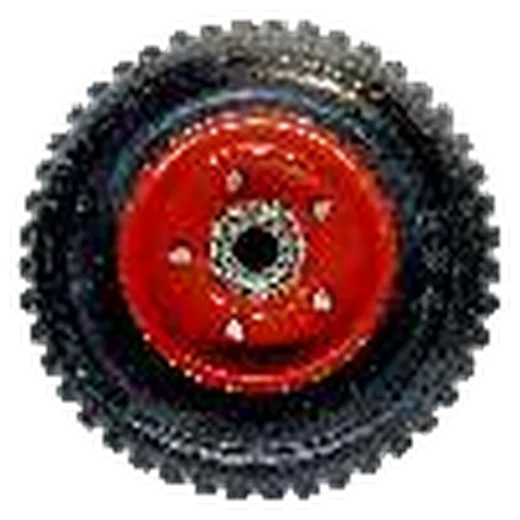

Rubber Caster, Steel Core
Rubber caster with steel core, double ball bearing.
Rubber on steel coreDouble ball bearingIndustrial casters
Type
Wheel size (mm)
- Load / caster
- 180 kg
- Overall height
- 240 mm
- Wheel
- 160 x 50
Message: “Hi Star Brand, I'm interested in LY-1102, 160 x 50 mm. Please share price and availability.”
- Bulk and dealer orders welcome
- We reply the same working day.
DWG · LY-1102 · not to scale
Technical drawing
Key dimensions for the selected size. Full figures are in the table below.
Specifications
As printed in the Star Brand catalogue, page 21. Tap a row to select that size.
| Wheel (mm) | Load (kg) | Height (mm) | Offset (mm) | Plate (mm) | Hole centre (mm) | Bolt hole (mm) | Wheel dia (mm) |
|---|---|---|---|---|---|---|---|
| 125 x 50 | 150 | 193 | 36 | 115 100 | 85 73 | 20 11 | 125 |
| 160 x 50 | 180 | 240 | 39.5 | 115 100 | 85 73 | 20 11 | 160 |
| 206 x 50 | 200 | 237 | 42 | 115 100 | 85 73 | 20 11 | 206 |
