Brake / lockLY Series · 4091-101

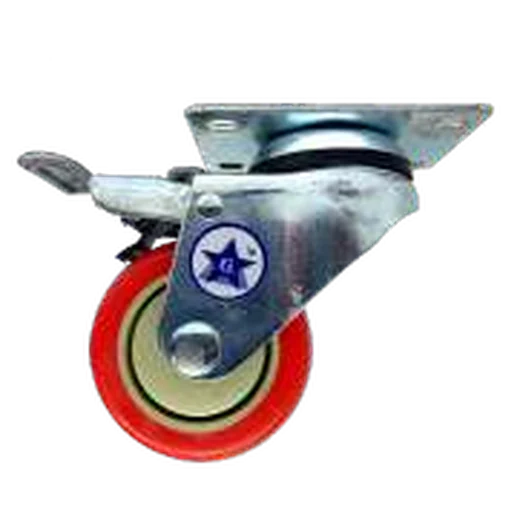

Red PU Caster, Zinc Bracket
PU caster double ball bearing swivel, fix & break with aluminum zinc brake.
PUDouble ball bearingIndustrial casters
Type
Wheel size (mm)
- Load / caster
- 120 kg
- Overall height
- 120 mm
- Wheel
- 101 x 32
Message: “Hi Star Brand, I'm interested in 4091-101, 101 x 32 mm. Please share price and availability.”
- Bulk and dealer orders welcome
- We reply the same working day.
DWG · 4091-101 · not to scale
Technical drawing
Key dimensions for the selected size. Full figures are in the table below.
Specifications
As printed in the Star Brand catalogue, page 22. Tap a row to select that size.
| Wheel (mm) | Load (kg) | Height (mm) | Offset (mm) | Plate (mm) | Hole centre (mm) | Bolt hole (mm) | Swivel code |
|---|---|---|---|---|---|---|---|
| 77 x 32 | 80 | 111 | 43 | 95x67 | 73 x 45 | 10.5 x 8.5 | 4091-77 |
| 101 x 32 | 120 | 120 | 40 | 95 x 67 | 73 x 45 | 10.5 x 8.5 | 4091-101 |
| 126 x 32 | 130 | 150 | 40 | 95 67 | 73 x 45 | 10.5 x 8.5 | 4091-126 |
