29100YP · Swivel / Fixed / Brake
PP Caster, Steel Ball Caps
Industrial casters100–200 mm · up to 420 kg
Brake / lockGD Series · GD-G31011

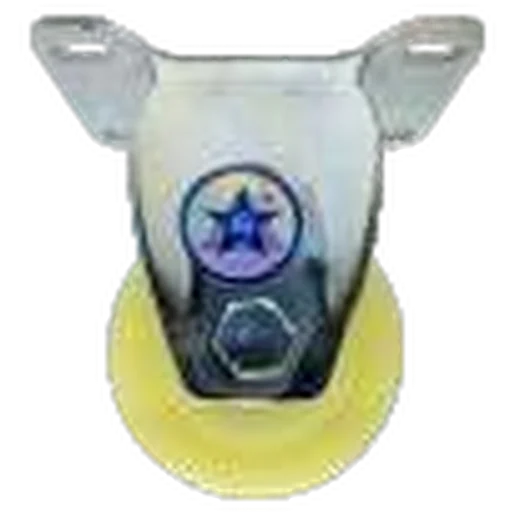

TPP Nylon Caster
Medium duty TPP nylon caster (flat surface) with double ball bearing.
TPP nylonDouble ball bearingIndustrial casters
Type
Wheel size (mm)
- Load / caster
- 60 kg
- Overall height
- 76 mm
- Wheel
- 50
Message: “Hi Star Brand, I'm interested in GD-G31011, 50 mm. Please share price and availability.”
- Bulk and dealer orders welcome
- We reply the same working day.
DWG · GD-G31011 · not to scale
Technical drawing
Key dimensions for the selected size. Full figures are in the table below.
Specifications
As printed in the Star Brand catalogue, page 23. Tap a row to select that size.
| Size (inch) | Wheel dia (mm) | Tread width (mm) | Wheel material | Load (kg) | Height (mm) | Plate thickness (mm) | Bracket thickness (mm) | Thread |
|---|---|---|---|---|---|---|---|---|
| 1.5” | 38 | 23 | TPP | 45 | 62 | 2.2 | 2 | M8xL15/M10xL20 |
| 2” | 50 | 28 | TPP | 60 | 76 | 2.4 | 2.2 | M8xL15/M10xL25 |
| 2.5” | 65 | 32 | TPP | 90 | 95 | 3 | 2.8 | M12xL25 |
