Brake / lockFY Series · 11100

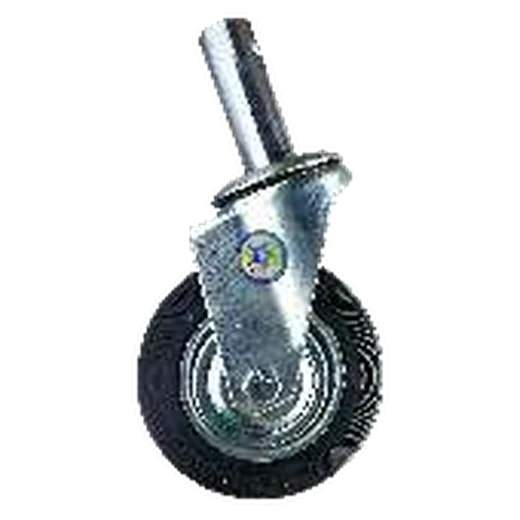

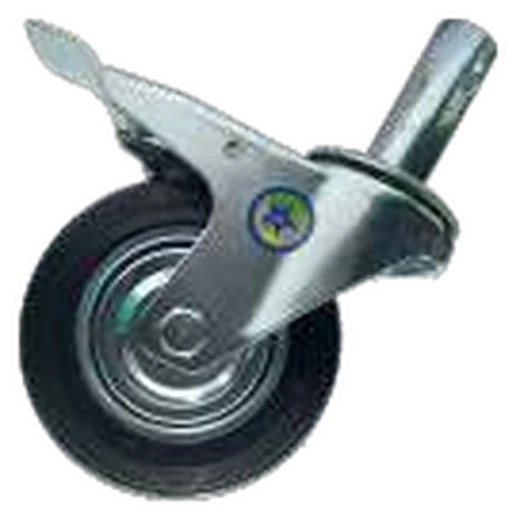

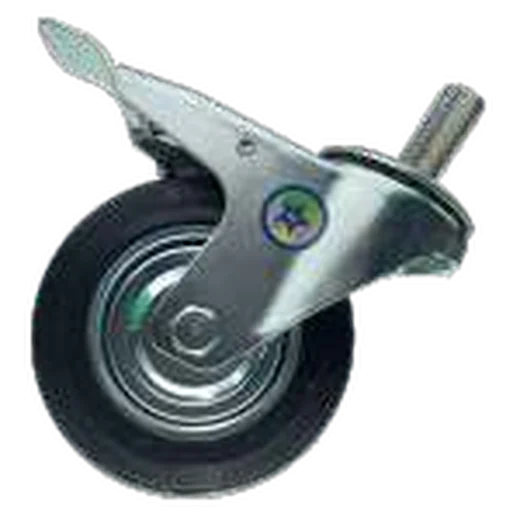

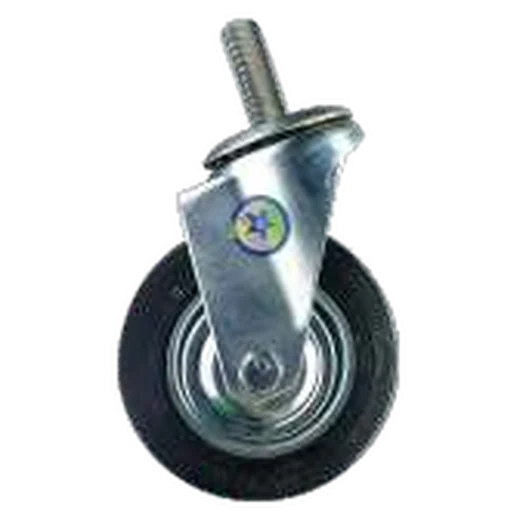

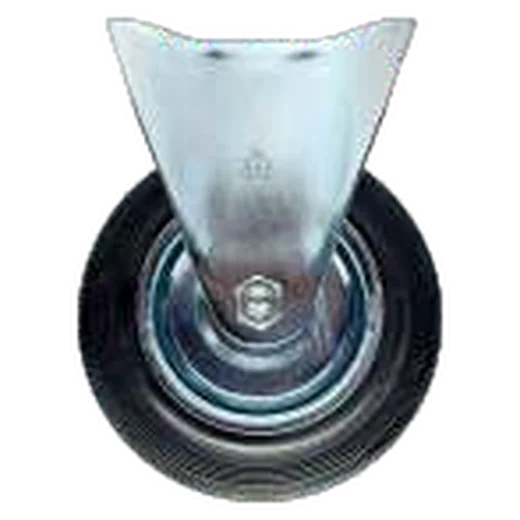

Black Rubber Caster
Black rubber caster with needle roller bearing.
Black rubberNeedle roller bearingIndustrial casters
Type
Wheel size (mm)
- Load / caster
- 60 kg
- Overall height
- 130 mm
- Wheel
- 100X27
Message: “Hi Star Brand, I'm interested in 11100, 100X27 mm. Please share price and availability.”
- Bulk and dealer orders welcome
- We reply the same working day.
DWG · 11100 · not to scale
Technical drawing
Key dimensions for the selected size. Full figures are in the table below.
Specifications
As printed in the Star Brand catalogue, page 13. Tap a row to select that size.
| Swivel code | Fixed code | Height (mm) | Wheel (mm) | Offset (mm) | Plate (mm) | Hole centre (mm) | Bolt hole (mm) | Load (kg) |
|---|---|---|---|---|---|---|---|---|
| 11075 | 11075F | 97 | 75X23 | 32 | 84X72 | 62X50 | 8.5X11 | 40 |
| 11100 | 11100F | 130 | 100X27 | 35 | 102X84 | 80X60 | 9X14 | 60 |
| 11125 | 11125F | 155 | 125X34 | 35 | 102X84 | 80X60 | 9X14 | 100 |
| 11160 | 11160F | 195 | 160X40 | 43 | 135X105 | 105X75 | 11X15 | 130 |
| 11200 | 11200F | 235 | 200X46 | 47 | 135X105 | 105X75 | 11X15 | 150 |
| 11250 | 11250F | 285 | 250X50 | 55 | 135X105 | 105X75 | 11X15 | 180 |
