LY-1312 · Swivel / Fixed / Brake
LY Series Cast Iron PU Caster
Heavy-duty casters150–250 mm · up to 1,600 kg
Brake / lockML Series · 30125PUC

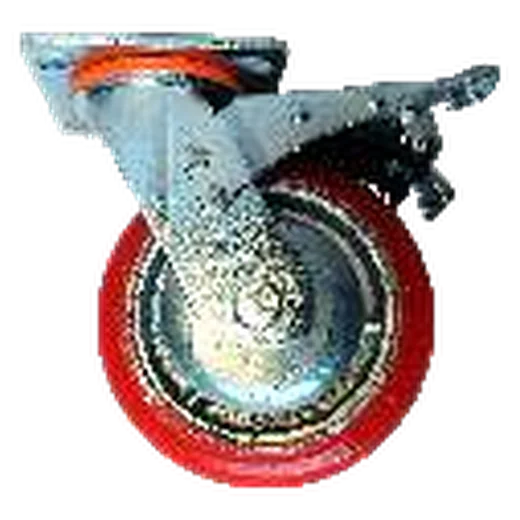

Cast Iron PU Caster
Cast iron PU caster with double ball bearing swivel - fix & on off brake.
PU on cast ironDouble ball bearingHeavy-duty casters
Type
Wheel size (mm)
- Load / caster
- 220 kg
- Overall height
- 164 mm
- Wheel
- 125X48
Message: “Hi Star Brand, I'm interested in 30125PUC, 125X48 mm. Please share price and availability.”
- Bulk and dealer orders welcome
- We reply the same working day.
DWG · 30125PUC · not to scale
Technical drawing
Key dimensions for the selected size. Full figures are in the table below.
Specifications
As printed in the Star Brand catalogue, page 4. Tap a row to select that size.
| Swivel code | Fixed code | Brake code | Height (mm) | Wheel (mm) | Offset (mm) | Plate (mm) | Hole centre (mm) | Bolt hole (mm) | Load (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 30100PUC | 30100PUCF | 30100PUCB | 142 | 100X48 | 35 | 114X100 | 85X72 | 10X19 | 180 |
| 30125PUC | 30125PUCF | 30125PUCB | 164 | 125X48 | 39 | 114X100 | 85X72 | 10X19 | 220 |
| 30150PUC | 30150PUCF | 30150PUCB | 190 | 150X48 | 45 | 114X100 | 85X72 | 10X19 | 280 |
| 30200PUC | 30200PUCF | 30200PUCB | 240 | 200X48 | 56 | 114X100 | 85X72 | 10X19 | 350 |
