ML-1322 · Swivel / Fixed / Brake
Cast Nylon Heavy-Duty Caster
Heavy-duty casters100–200 mm · up to 1,200 kg
Brake / lockLY Series · LY-1312

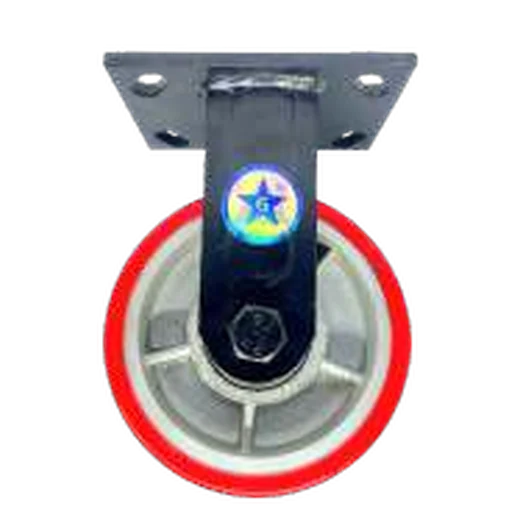

LY Series Cast Iron PU Caster
Cast iron PU, double ball bearings extra heavy duty caster.
PU on cast ironDouble ball bearingHeavy-duty casters
Type
Wheel size (mm)
- Load / caster
- 1400 kg
- Overall height
- 264 mm
- Wheel
- 200 x 63
Message: “Hi Star Brand, I'm interested in LY-1312, 200 x 63 mm. Please share price and availability.”
- Warranty and test certificate given
- Bulk and dealer orders welcome
- We reply the same working day.
DWG · LY-1312 · not to scale
Technical drawing
Key dimensions for the selected size. Full figures are in the table below.
Specifications
As printed in the Star Brand catalogue, page 20. Tap a row to select that size.
| Wheel (mm) | Load (kg) | Height (mm) | Offset (mm) | Plate (mm) | Hole centre (mm) | Bolt hole (mm) |
|---|---|---|---|---|---|---|
| 150 x 50 | 1000 | 206 | 43 | 149 x 110 | 113 x 70 | 25 x 13 |
| 200 x 63 | 1400 | 264 | 56 | 174 x 174 / 175 x 140 | 140 x 140 / 140 x 105 | 15 |
| 250 x 63 | 1600 | 305 | 70 | 174 x 174 / 175 x 140 | 140 x 140 / 140 x 105 | 15 |
Related products
All heavy-duty casters →
Need a bulk quote?
Send the model code and quantity. We reply the same working day.
