LY-1312 · Swivel / Fixed / Brake
LY Series Cast Iron PU Caster
Heavy-duty casters150–250 mm · up to 1,600 kg
Brake / lockML Series · 303-150S

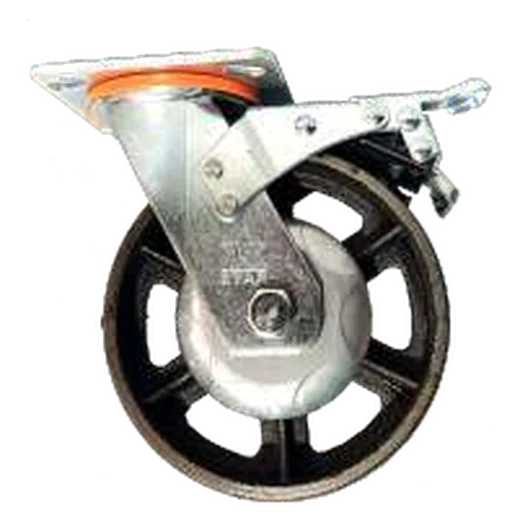

Cast Iron Caster
Cast iron caster with double ball bearing swivel, fix & on off brake.
Cast ironDouble ball bearingHeavy-duty casters
Type
Wheel size (mm)
- Load / caster
- 350 kg
- Overall height
- 190 mm
- Wheel
- 150x50
Message: “Hi Star Brand, I'm interested in 303-150S, 150x50 mm. Please share price and availability.”
- Bulk and dealer orders welcome
- We reply the same working day.
DWG · 303-150S · not to scale
Technical drawing
Key dimensions for the selected size. Full figures are in the table below.
Specifications
As printed in the Star Brand catalogue, page 5. Tap a row to select that size.
| Swivel code | Fixed code | Height (mm) | Wheel (mm) | Offset (mm) | Plate (mm) | Hole centre (mm) | Bolt hole (mm) | Load (kg) |
|---|---|---|---|---|---|---|---|---|
| 303-100S | 304-100R | 135 | 100x50 | 100 | 114x98 | 70x85 | 10.5x19 | 250 |
| 303-150S | 304-150R | 190 | 150x50 | 150 | 114x98 | 70x85 | 10.5x19 | 350 |
| 303-200S | 304-200R | 235 | 200x50 | 200 | 114x98 | 70x85 | 10.5x19 | 380 |
