Brake / lockFY / ML Series · 41065NY

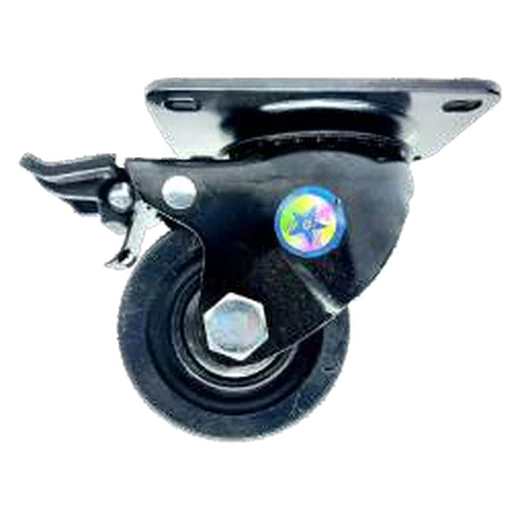

Low-Gravity Nylon Caster
Low gravity extra heavy nylon caster with ball bearing.
NylonBall bearingHeavy-duty casters
Type
Wheel size (mm)
- Load / caster
- 200 kg
- Overall height
- 90.2 mm
- Wheel
- 65 x 40
Message: “Hi Star Brand, I'm interested in 41065NY, 65 x 40 mm. Please share price and availability.”
- Bulk and dealer orders welcome
- We reply the same working day.
DWG · 41065NY · not to scale
Technical drawing
Key dimensions for the selected size. Full figures are in the table below.
Specifications
As printed in the Star Brand catalogue, page 10. Tap a row to select that size.
| Swivel code | Fixed code | Brake code | Height (mm) | Wheel (mm) | Offset (mm) | Plate (mm) | Hole centre (mm) | Bolt hole (mm) | Load (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 41050NY | 41050NYF | 41050NYB | 70 | 50 x 30 | 24 | 72 x 53 | 55 x 38 | 6 x 8 | 150 |
| 41065NY | 41065NYF | 41065NYB | 90.2 | 65 x 40 | 26 | 95 x 68 | 72 x 43 | 9 x 11 | 200 |
| 41075NY | 41075NYF | 41075NYB | 105 | 75 x 45 | 27 | 105 x 80 | 83 x 60 | 9 x 11 | 250 |
